Description

Anesthesia Vaporizer

Anesthesia Vaporizer is a precise medical device used to deliver volatile vapour Anesthestic. The Anesthesia Vaporizers are well made of high quality metal material, copper alloy inside. The surface is smooth and fine. The output concentration is stable and exact. It has compensation function for changes in flow, pressure and temperature. All Vaporizers have been strictly calibrated by experienced engineers.High precise Anesthesia Vaporizer (Halothane, Isoflurane, Sevoflurane for choice).

Features:

• Meet the requrement of International Standard ISO 8835-4
• Stably deliver agent, automatic temperature-compensating, deliver accurate agent
• Sophisticated delivery system
• Stable, prompt, accurate
• Various kinds of mounting types. Meets different anesthetic machine requirements.

Main Technical Data:

Concentration Range:

• Halothane: 0 to 5 Vol. %
• Isoflurane: 0 to 5 Vol.%
• Sevoflurane: 0 to 8 Vol.%

Flow Range:

• 0 to 10 L/min at Working Environment Temp. +10℃~+35℃, 0-10kPa

Filling Volume for Agent:

• About 280mL with dry wick
• About 250mL with wet wick

Agent Type:

• Halothane
• Isoflurane
• Sevoflurane

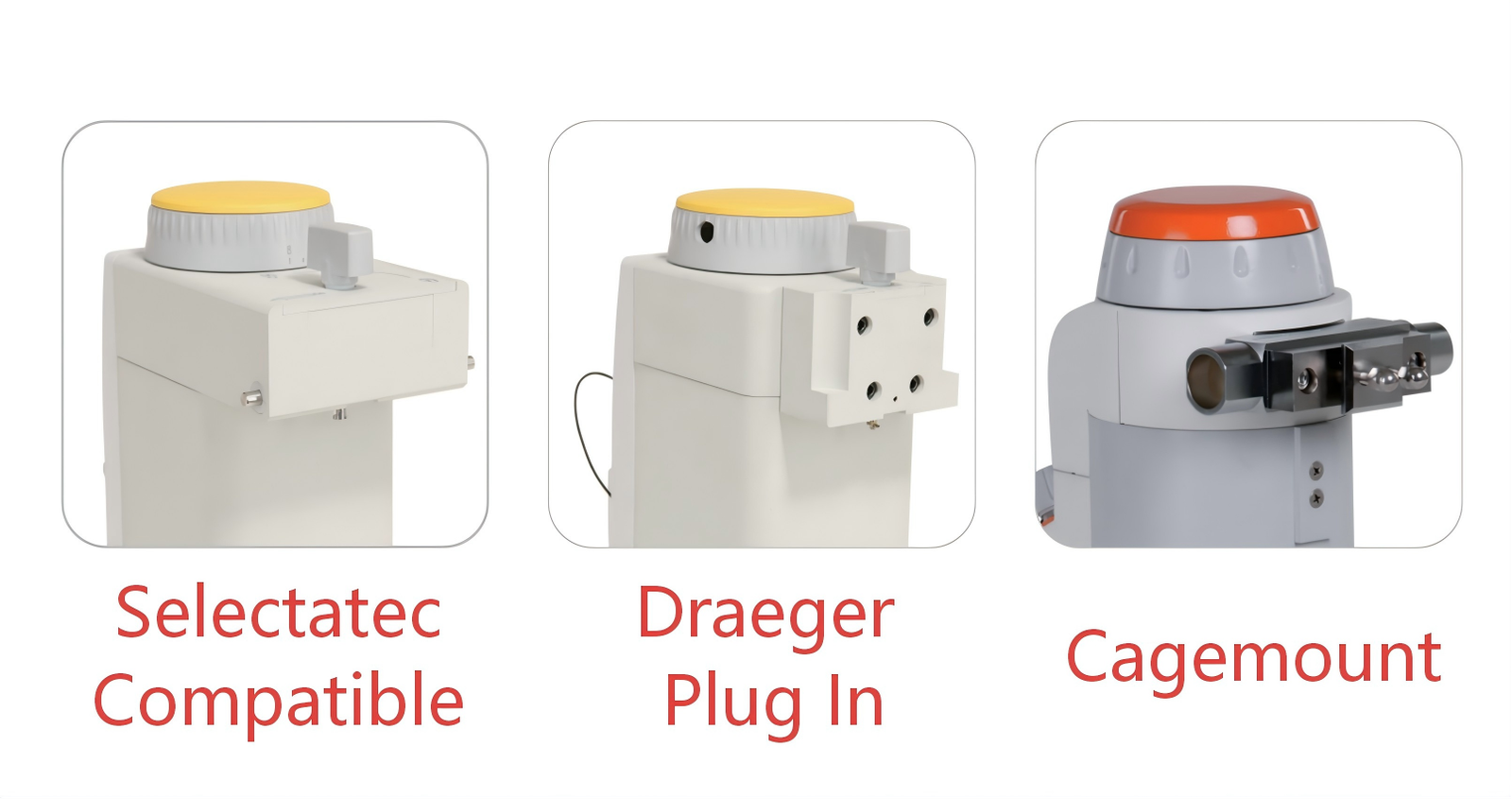

Mounting Type:

• Selectatec Compatible,  this interlock system is designed by Datex-Ohmeda, This technology allows medical staff to quickly and safely install and replace vaporizers on anesthesia machines, while ensuring that only one vaporizer can be activated at a time to guarantee safety. Therefore, it is widely used in anesthesia machines from various brands.In addition to GE, it is also used by Mindray, Penlon, Comen, Aeonmed etc.
• Cagemount ISO 23mm Tapers

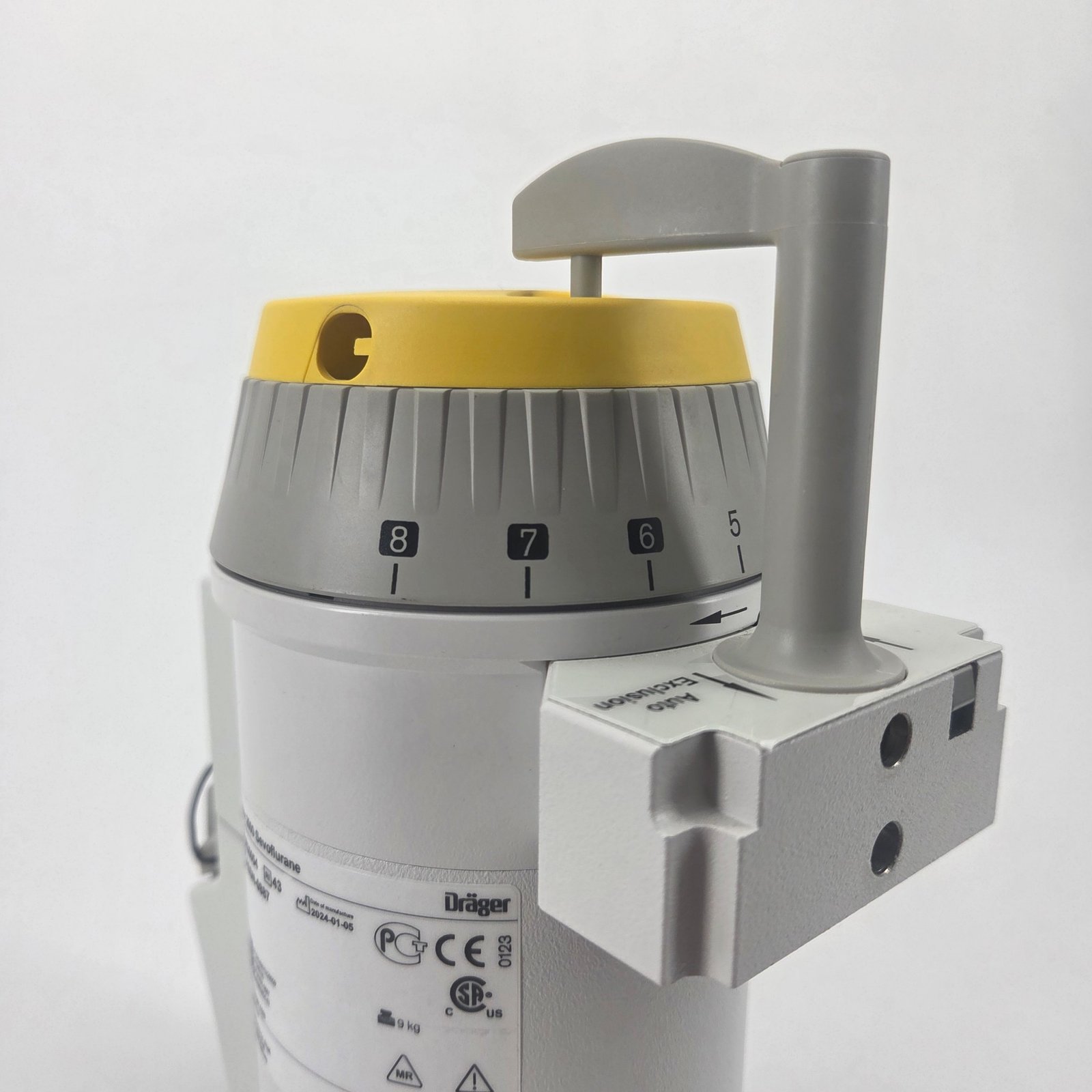

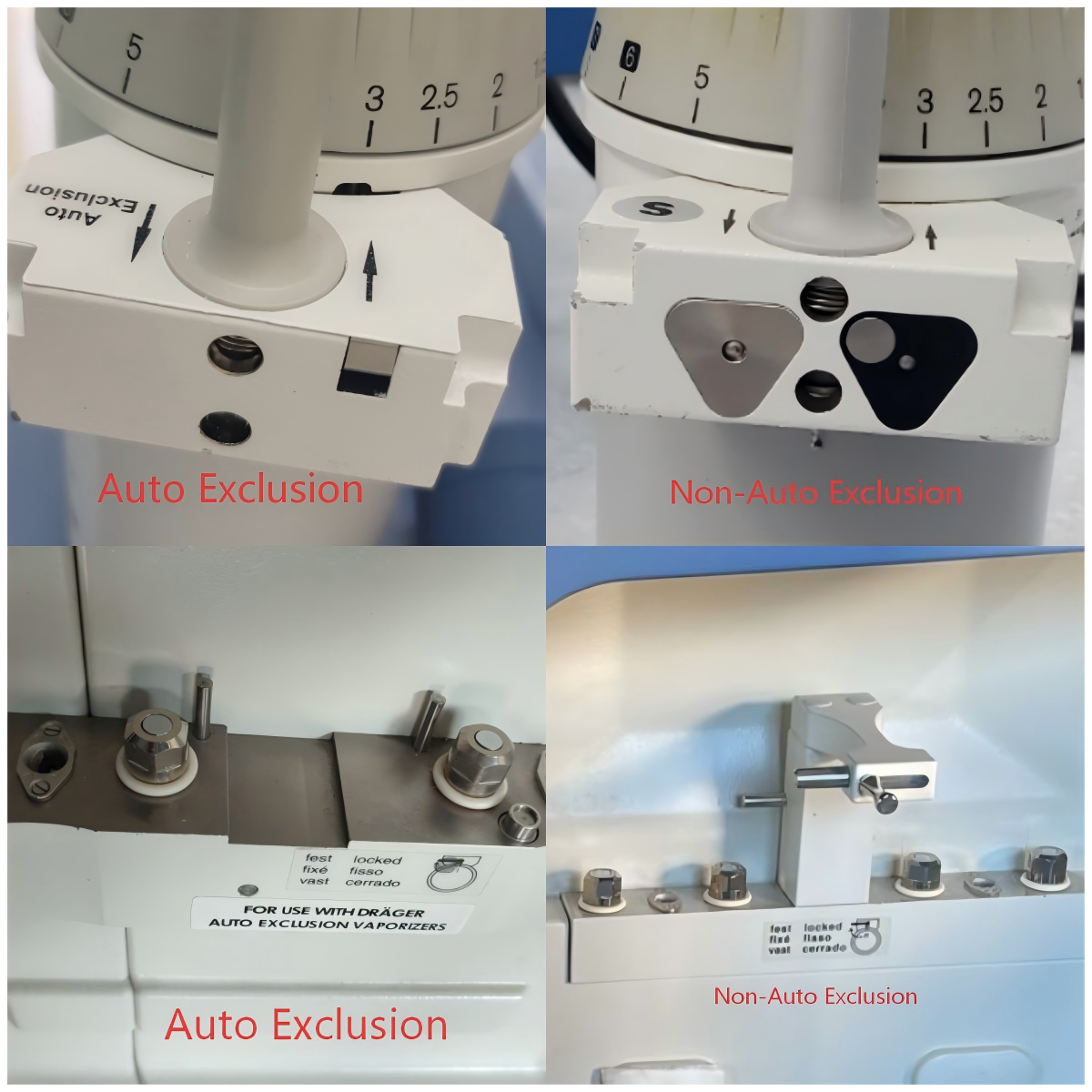

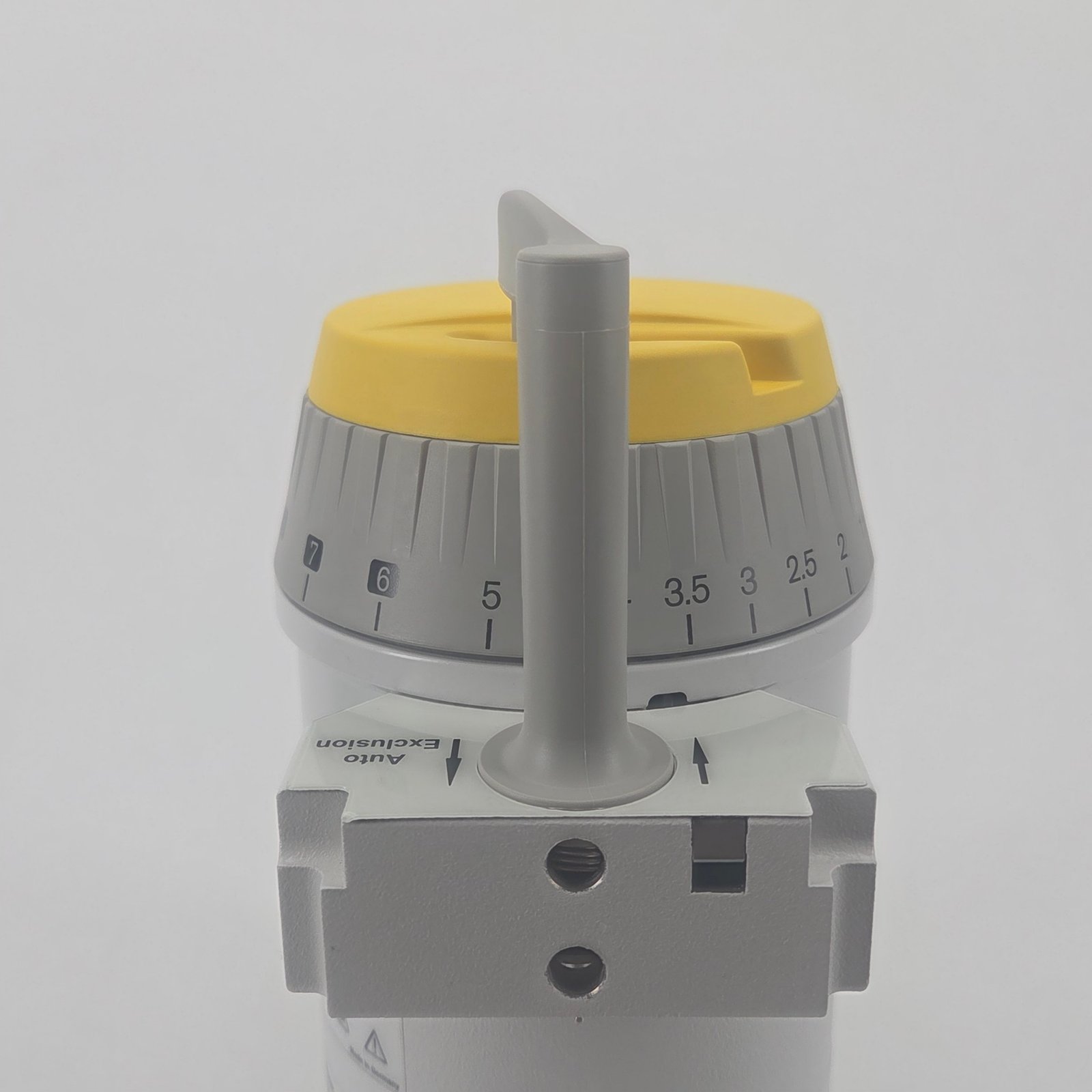

• Dräger Plug in, Dräger-specific mount type. There are two types , Auto-Exsclusion(new version) and Non-Auto-Exclusion Interlock System that shown in the following figure..

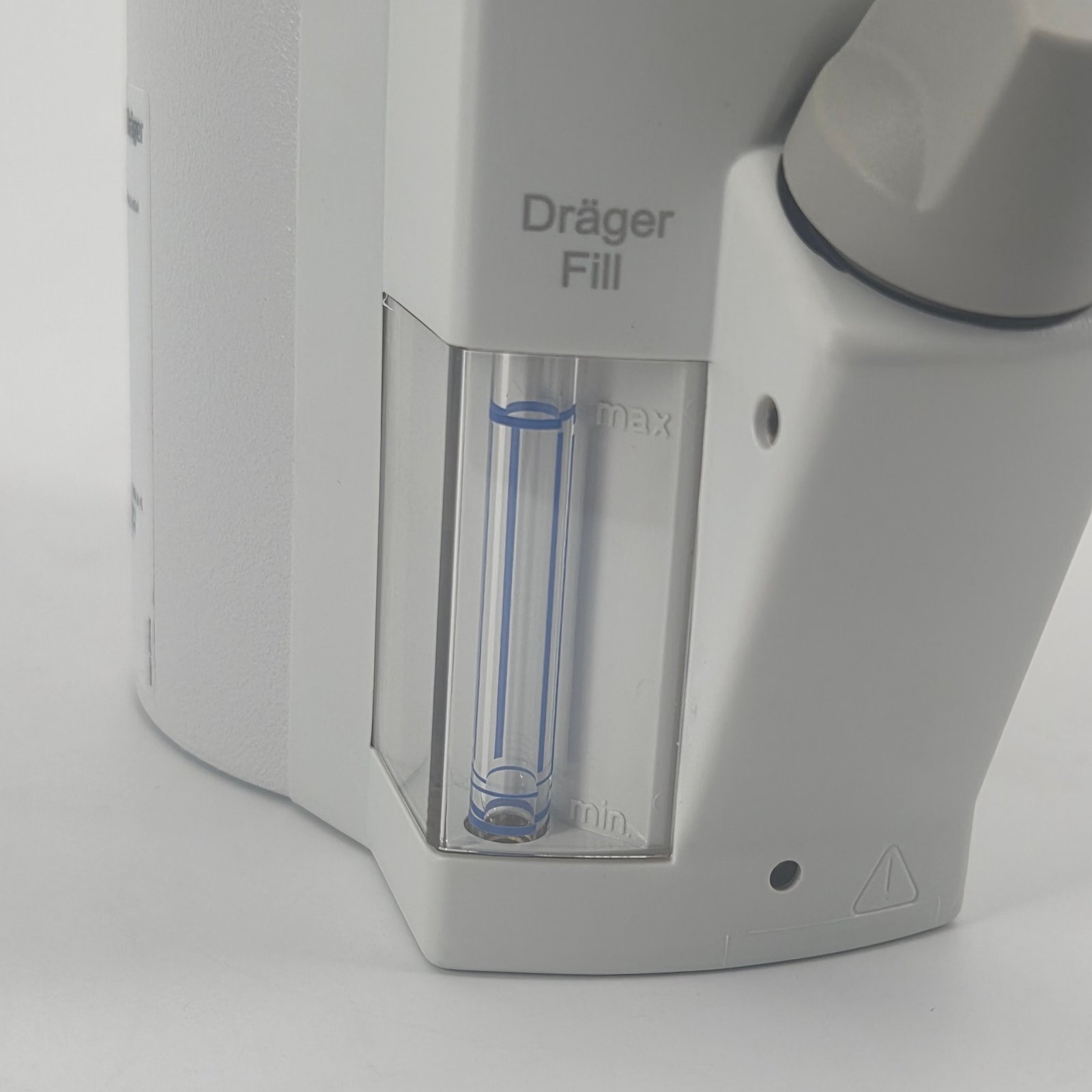

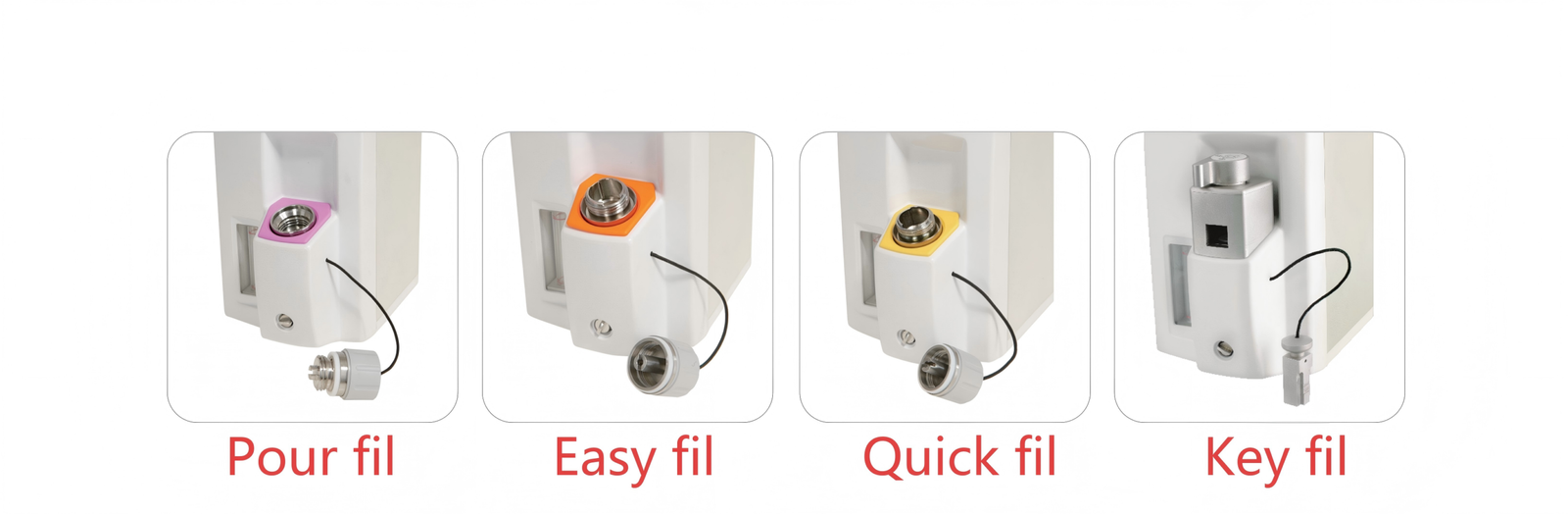

Filling Type:

• Pour fil
• Easy fil
• Quick fil(Sevoflurane only)
• Key fil
